The electric wire processing business is up to a key business of our company since establishment. We are processing and producing the harness processing (for audio equipment for the car and electrical equipment) and the tape-styled electric wires (FFC) used for the computer, etc. by units each day.

	Wire harness processing We go from the design to procurement of the materials and finished processing in electrical equipment for the cars and various wire harness for Industrial Vehicles. We are widely processing wire harness processing from the lead lines for wiring in the various equipments to main harness for the large-scaled construction machinery and forklifts.

Internal wiring code of various equipment

Code for electrical equipment

Wire harness for electrical equipment and Industrial Vehicles

	Tape-styled electric wire (FFC) This commodity is economical lead lines which can directly be inserted in the connector. This commodity can be used as internal wirings such as computers, electronic calculators, and radio-cassettes, and the connective lead lines for printed bases and other electronic parts. The time of mounting can be saved and the miniaturization and lightening become possible by using this commodity.
	Mounting chart
	Note 1) Thickness of the conductor is possible from 0.025 to 0.1mm.

Specification Pitch between lines (P) 2.54±0.1 1.25±0.1 1.0±0.1 0.8 0.5 Insulator Polyester which does not burn easily Reinforcement tape Polyester (white) Conductor Note 1) x1.27 tin plating and rectangled-soft copper wire Note 1) 0.8 tin plating and rectangled-soft copper wire Note 1) 0.6 tin plating, rectangle, and soft copper wire Note 1) 0.5 tin plating, rectangle, and soft copper wire Note 1) 0.3 tin plating, rectangle, and soft copper wire No. of line cores 3~35 3~70 4~90 4~110 4~50 Length of insulator (L1) 30~100 ±2 401~9999 ±2.0% 101~300 ±3 301~400 ±5 Length of reinforcement board (L2) 10, 15, 20 Length of strip (S) 3±0.5, 4±0.5 5±1.0, 6±1.0 Width of finish (W1) 2.54(N+1) +0.2 -0.4 1.25(N+1)±0.2 1.0(N+1)±0.12 0.8(N+1)±0.1 0.5(N+1)±0.08 Total pitch (W2) 2.54(N-1)±0.2 1.25(N-1)±0.15 1.0(N-1)±0.1 0.8(N-1)±0.1 0.5(N-1)±0.08 Margin (M) 2.54±0.3 1.25±0.2 1.0±0.15 0.8±0.15 0.5±0.1 Note 1) Thickness of the conductor is possible from 0.025 to 0.1mm.

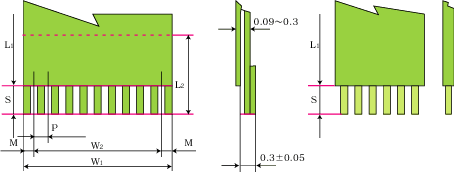

	Externals size
	Note 1) Thickness of the conductor is possible from 0.025 to 0.1mm.

Inquiry Please inquire various electric wire processing following. We receive the Assy processing of the installation of accompanied parts on the code and the harness etc. in total. Sales section;Mr.Oshiyama TEL:0243-23-4546(Direct) FAX:0243-23-4544 E-mail:eigyo@eikura.co.jp

---
